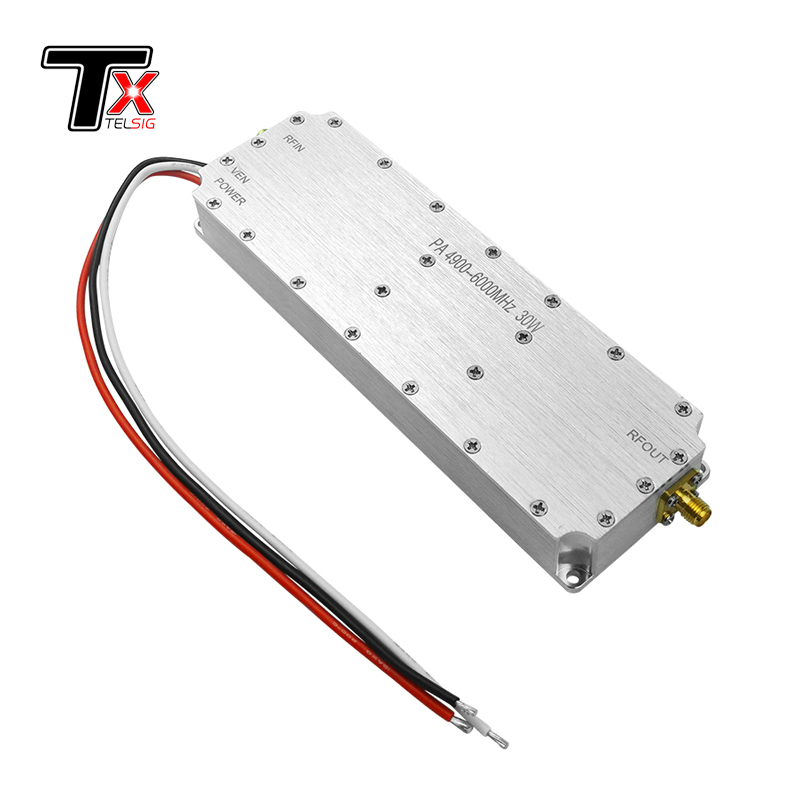

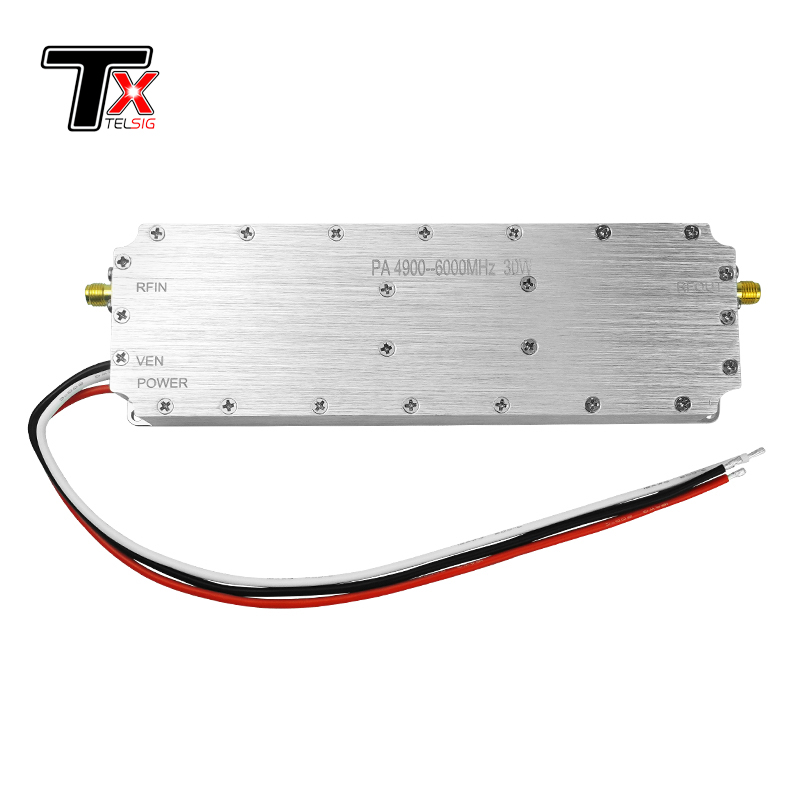

This 30 power RF amplifier module is light in weight and can select frequency as needed. The power port is marked with red and black lines, allowing users to conveniently distinguish between the positive and negative poles. And the body of this 30W RF amplifier module is made of aluminum, which has good heat dissipation performance.
|
Element |
data |
block |
|
|
1 |
frequency |
Set up |
MHz |
|
2 |
test voltage |
24-28 |
в |
|
3 |
the flow |
3 |
А |
|
4 |
output |
30 |
Tuesday |
|
5 |
gain |
43 |
dB |
|
6 |
output stability |
1 |
dB |
|
7 |
connector |
SMA/woman |
|
|
8 |
VSWR output connector |
≤1.30 (without power and VNA test) |
|
|
9 |
standard input |
0-10 dB |
|
|
10 |
power wires |
red+black+unlock wire |
|
|
11 |
allowing you to control |
high low off |
|
|
12 |
from shell size |
179*50*20 |
mm |
|
13 |
mounting hole |
50*154 |
mm |
|
14 |
Weight |
290 |
г |
|
15 |
operating temperature |
-40~+65 |
℃ |
|
16 |
made of body material |
aluminum |
|
|
17 |
vibration is needed |
car load OK |
|
