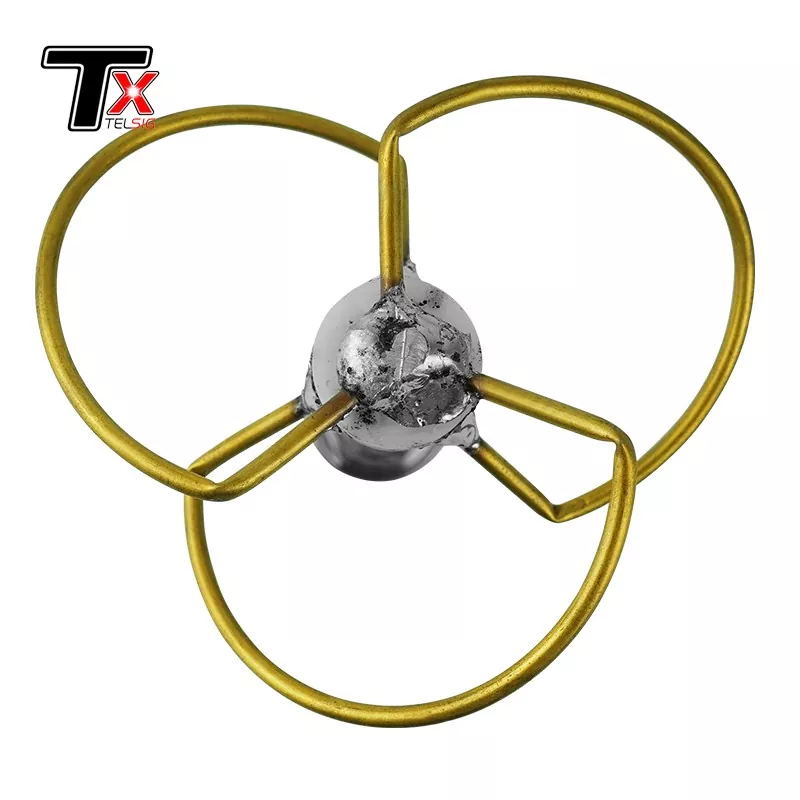

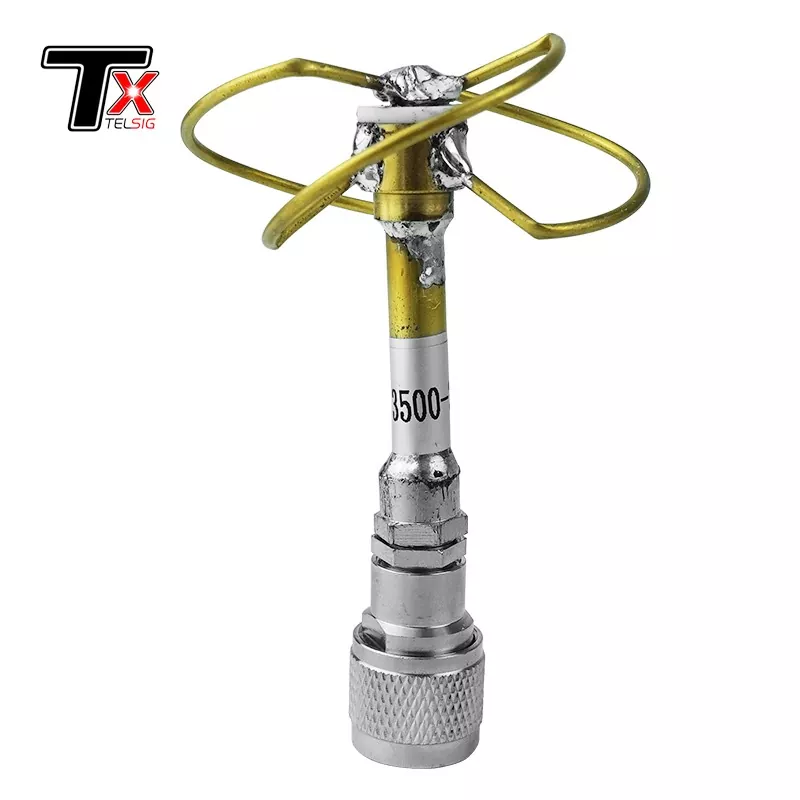

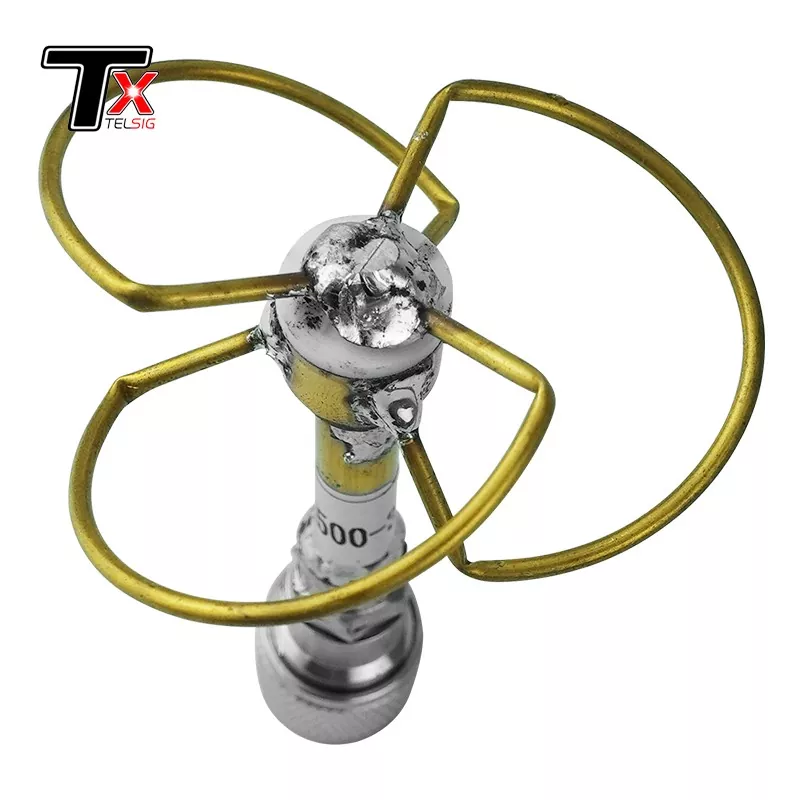

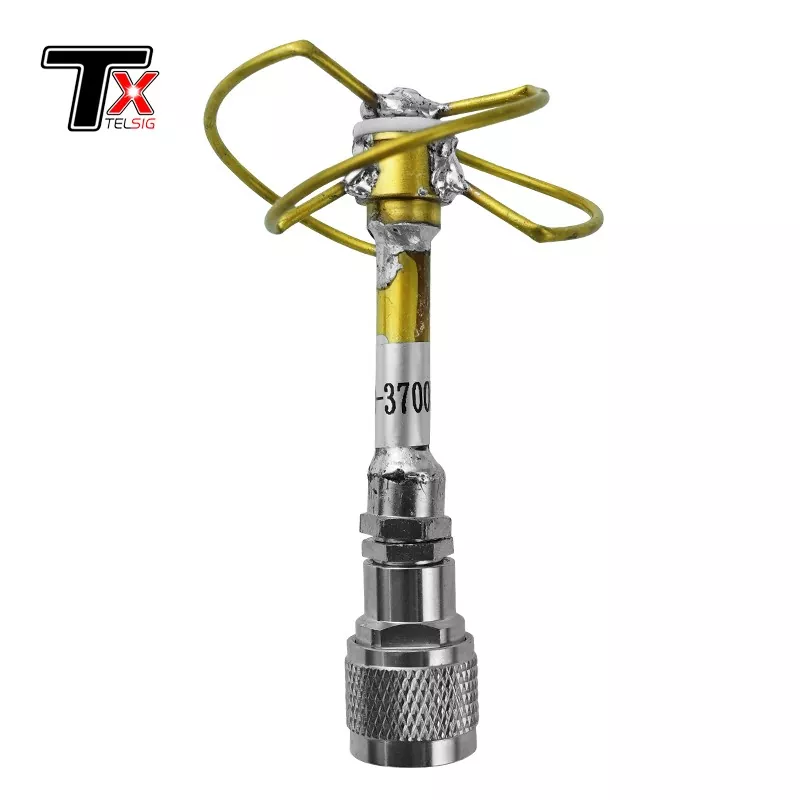

Omnidirectional Antenna The 3500-3700 MHz High Power Clover Antenna is specially designed to be used as a high-power antenna designed for large drones operating precisely in the 3500-3700 MHz frequency range. It is distinguished by its distinctive four-leaf clover design, which gives it the advantage of providing omnidirectional signal coverage. This means that it can send and receive signals evenly in all directions without any blind spots. This antenna has found wide application in many fields. For example, in the field of wireless communications, it can be used to build wireless LANs, wireless sensor networks, etc. It plays a crucial role in establishing reliable and widespread wireless connections in these environments.
|
█ Electrical characteristics |
|
|
Frequency range |
3500-3700 MHz |
|
Gain (dBi) |
3±0.5 dBi |
|
KSVN |
≤1,5 |
|
Polarization |
vertical |
|
Horizontal Beam Width (0º) |
360º |
|
Ovality (dB) |
55±5º |
|
Input Impedance (Ohm) |
≤±2 dB |
|
Maximum input power (W) |
50 Om |
|
Inpur connector type |
100 W |
|
█ Mechanical characteristics |

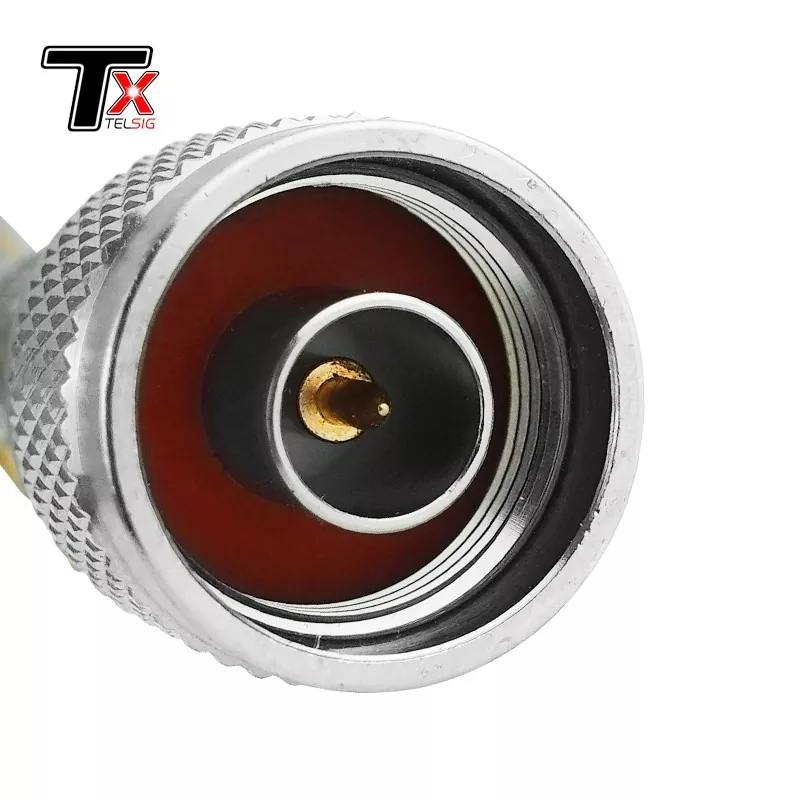

SMA (female thread inside the needle) |
|
Dimensions mm (height/width/depth) |
|
|
Antenna weight (kg) |
ɸ93*19 mm |
|
Fairing color |
0.61 kg |
|
Operating Temperature (ºC) |
yellow |
|
Installation method |
-40～80 º |
1. High power signal transmission
2. Adopts circular polarization design for anti-interference
3. 360 degree omnidirectional coverage, no blind spots
4. 100W high power antenna allows installation of high power consumption devices
