TeXin is a manufacturer and supplier with 10 years of experience in producing jamming devices. We have a professional technical team. Our customers come from all over the world, we always offer high quality jamming module to our customers. We can always satisfy every detail of our customers' needs.

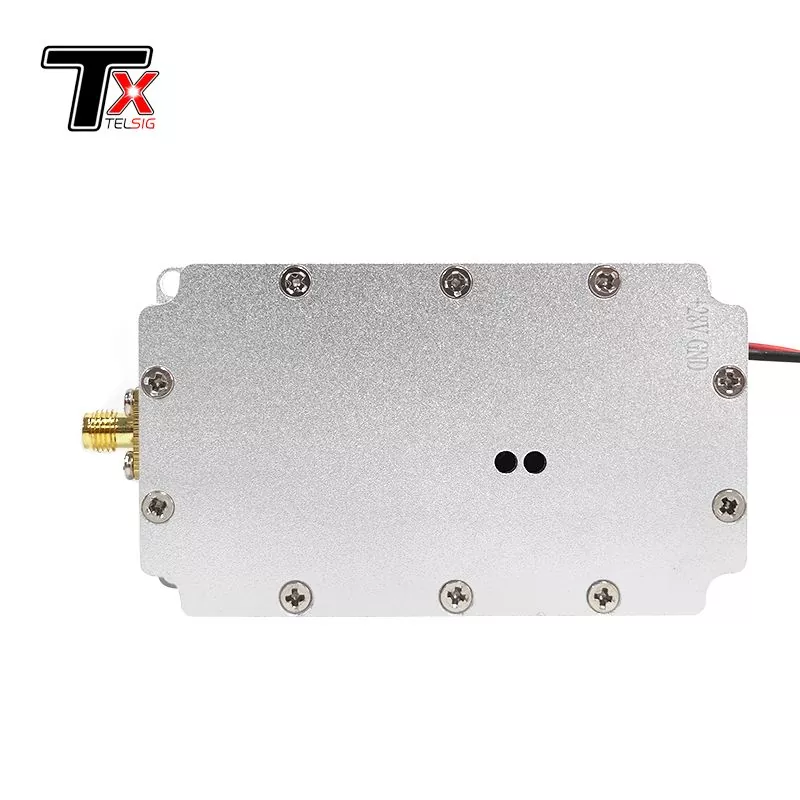

The 400-2700MHz 5W 10W Jamming Module with SMA Connector is an information security module that is solely used to block the signal transmission of drone ground station. This module has an average output power of 10W, sufficient power, good in-band spectral ripple, small band offset, effective swing frequency, small temperature drift of the interference source, convenient application, frequency hopping, good anti-drone effect.
|
50W RF Power Amplifier Specification |
||||
|
No. |
Item |
Data |
A unit of measurement |
Notes |
|
1 |
Frequency |
430-450/860-873/ 902-928/1100-1300 1560-1620/2400-2500, etc |
MGC |
tune |
|
2 |
Working Temperature |
-20~+70 |
℃ |
|
|
3 |
Max Output Power |
5/10 |
W |
|
|
4 |
Maximum Gain |
37/40 dBm |
dBm |
|
|
5 |
Operating voltage |
24 |
V |
|
|
6 |
Maximum Current |
1 |
A |
|
|
7 |
Impedance |
50Ω |
||
|
8 |
Output Connector |
SMA |
Customized |
|
|
9 |
Power Amplifier Efficiency |
45 |
% |
at Maximum Power |
|
10 |
Switch control |
current high low |
V |
24-28V Or Customized |
|
11 |
Adjustable power |
Tune |
I can do it if you need |
|
|
12 |
Standing Wave Protection |
OK |
||
|
13 |
Overheat protection |
75° |
℃ |
|
|
14 |
Size |
82*48*20 |
mm |
|
|
15 |
Weight |
127 |
g |
|
