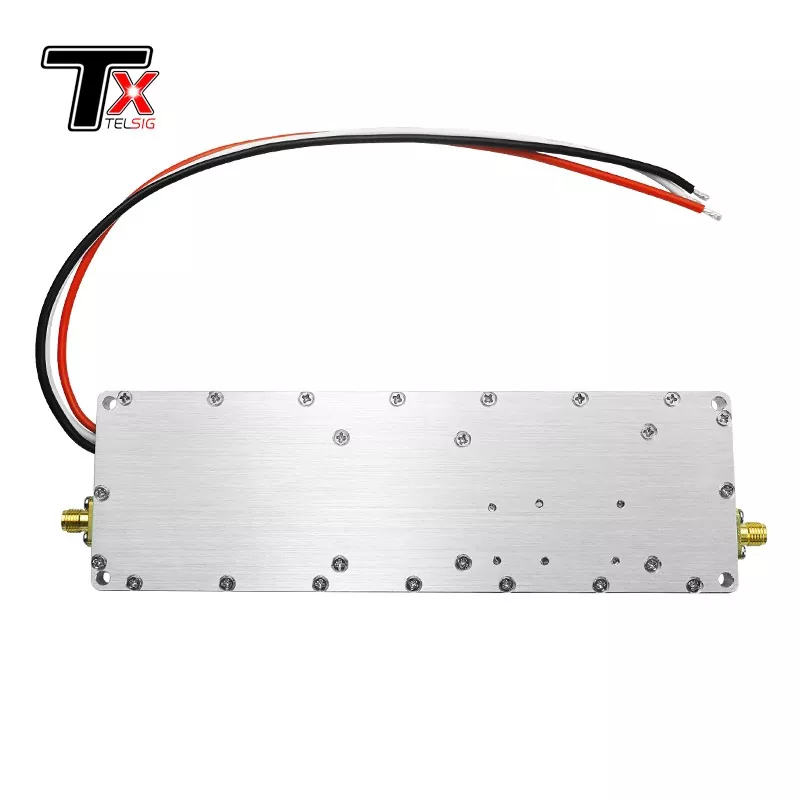

The 400 - 5800 MHz 50 W amplifier module with temperature protection is equipped with sophisticated temperature detection and protection mechanisms. It is equipped with a real-time internal temperature monitoring system. If the temperature exceeds a preset limit, the module autonomously changes its operating parameters or enters a protective state to prevent damage caused by overheating. This proactive approach ensures device stability and reliability.
|
No. |
Item |
Data |
Unit |
Notes |
|
1 |
Frequency |
400-5800 |
MHZ |
To order |
|
2 |
Operating temperature |
-20~+70 |
℃ |
|
|
3 |
Maximum output power |
50 |
W |
|
|
4 |
Operating voltage |
DC28 |
V |
|
|
5 |
Maximum Gain |
47 |
dB |
|
|
6 |
Flatness |
±1 |
dB |
|
|
7 |
Maximum current |
4 |
A |
|
|
8 |
Output VSWR |
≤1.5 |
||
|
9 |
Output connector |
SMA/F 50Ω |
Individual |
|
|
10 |
Power amplifier efficiency |
45 |
when max output |
|
|
11 |
Switch Management |
high low |
V |
0 V disabled / 0.6 enabled |
|
12 |
Standing wave protection |
OK |
||
|
13 |
Overheat protection |
75° |
℃ |
|
|
14 |
Size |
179*50*20 |
mm |
|
|
15 |
Weight |
0.294 |
kg |
