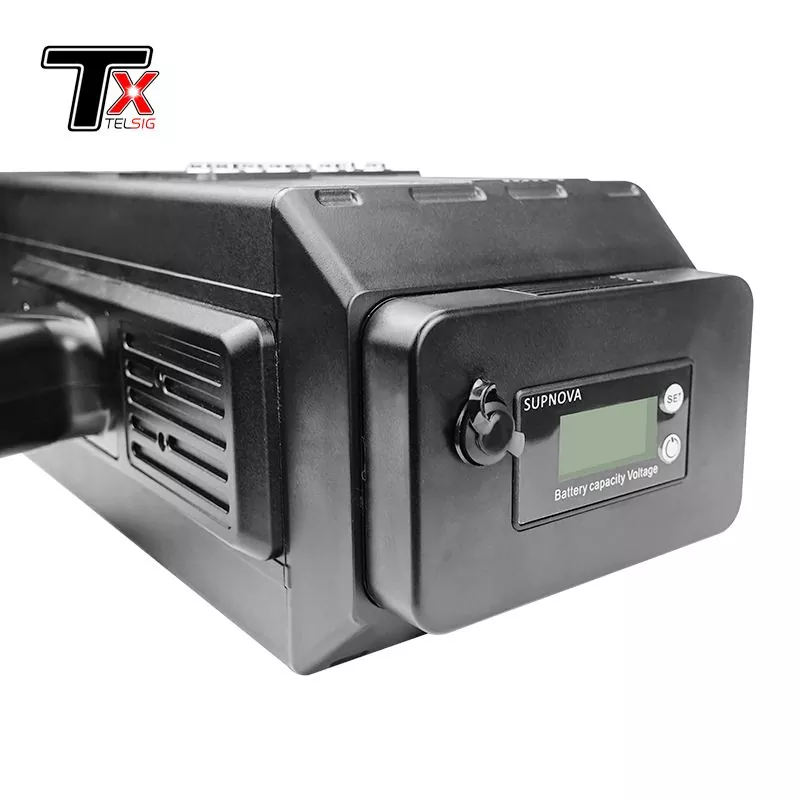

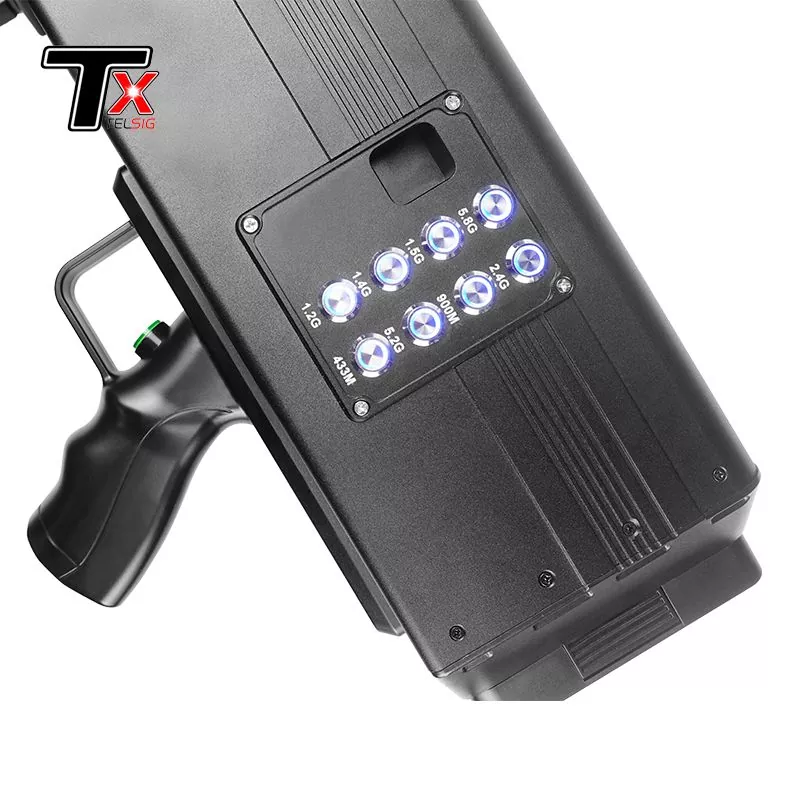

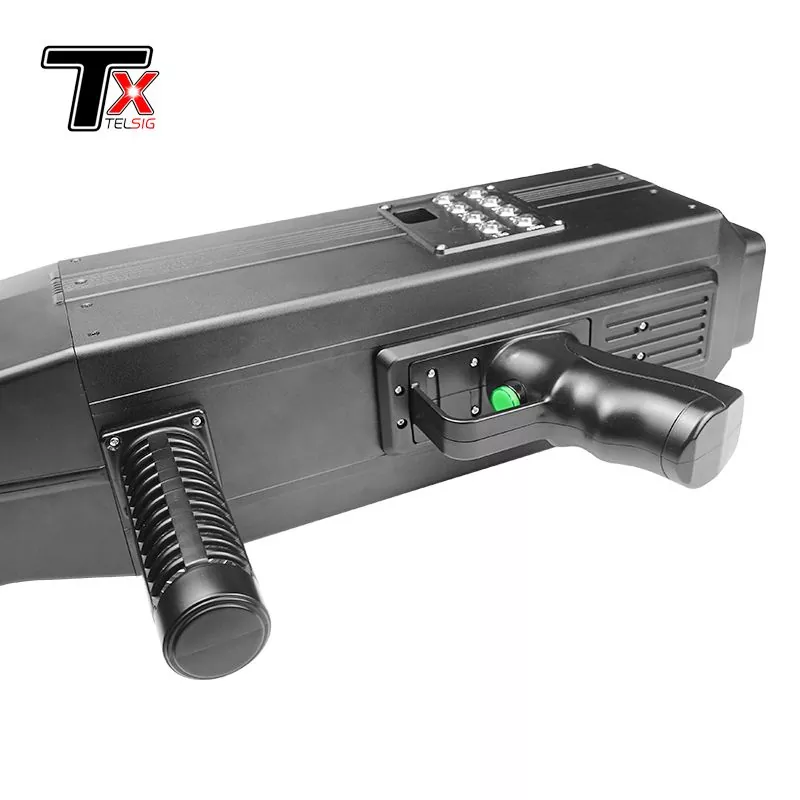

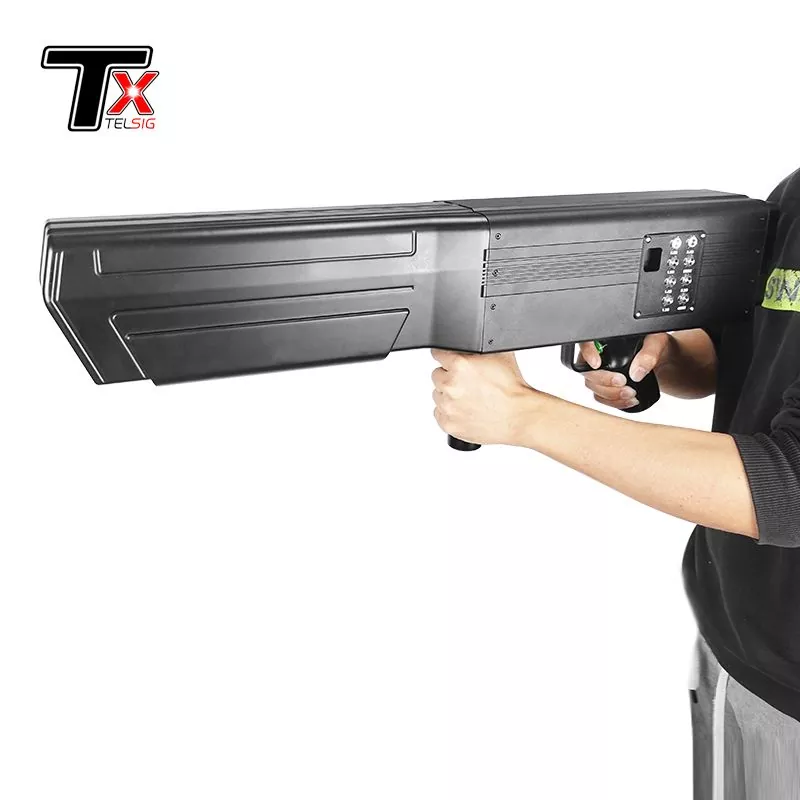

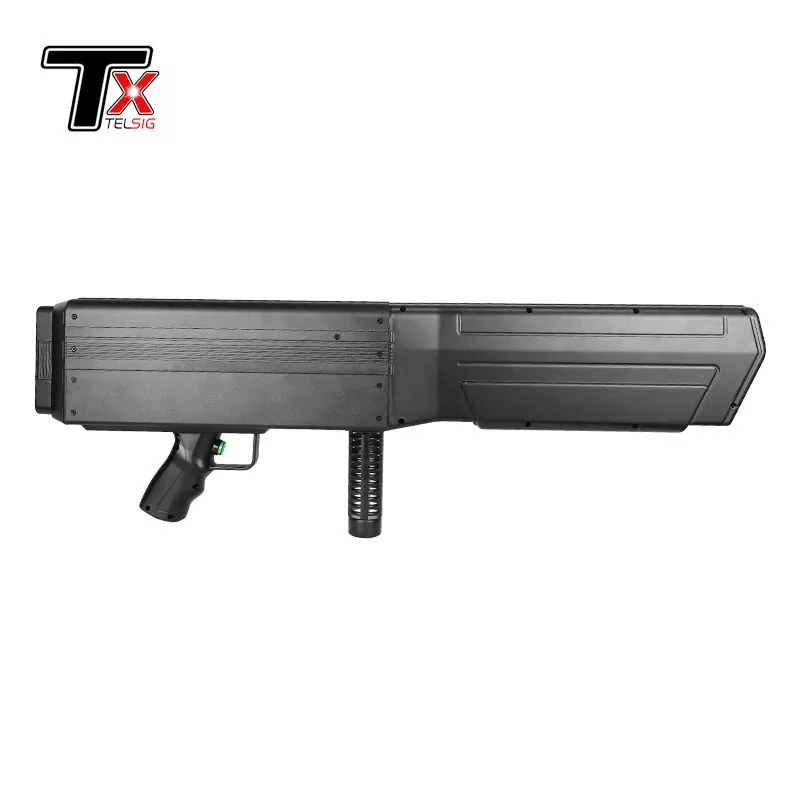

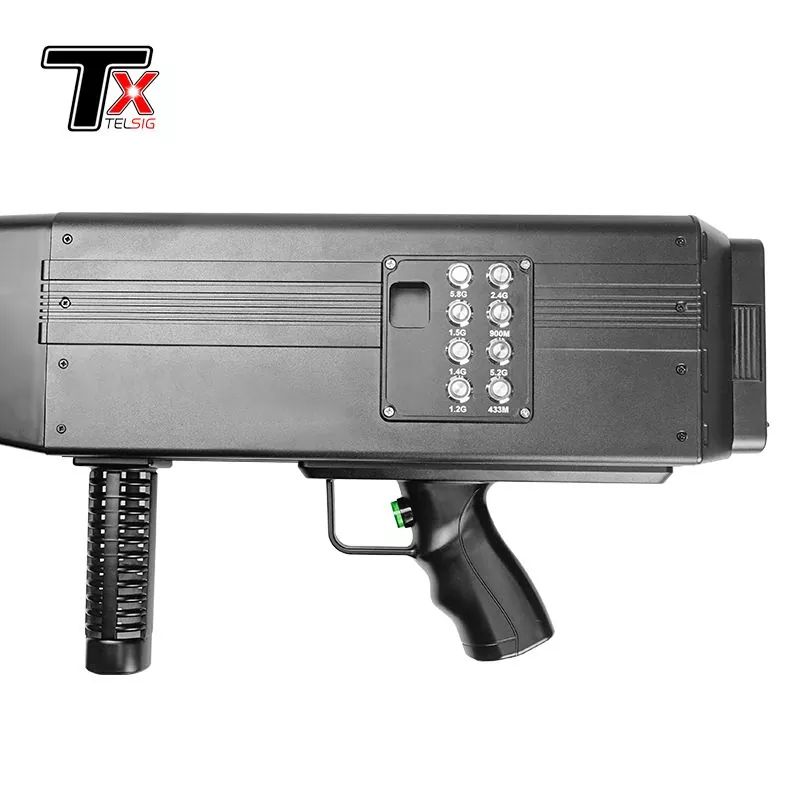

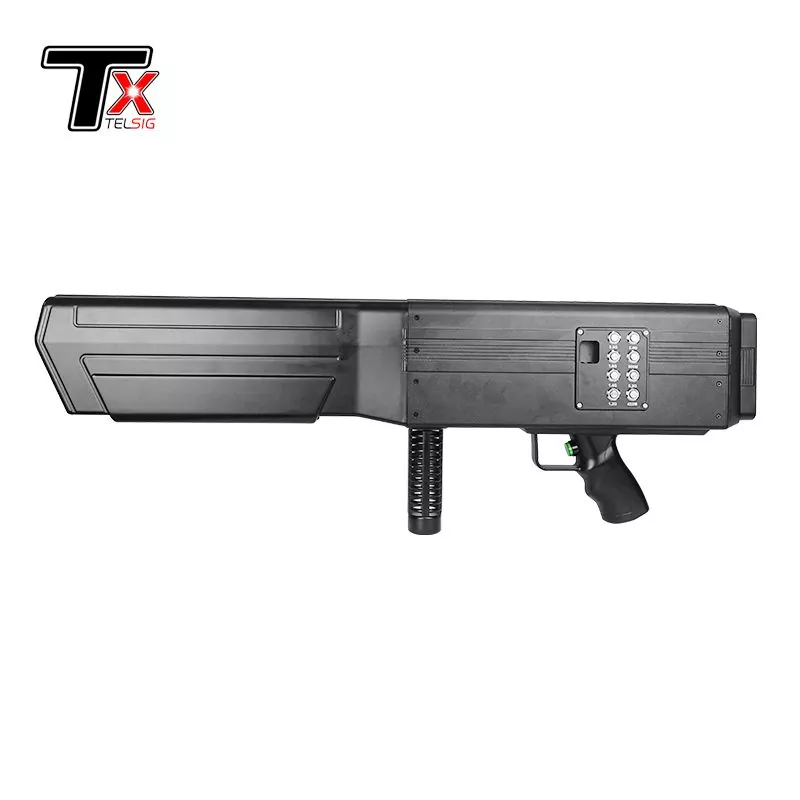

The 8 Channel Long Range Drone Signal Jammer is equipped with 8 channels, and the output power can reach 260W. It has a detachable battery design, which is convenient for replacement and charging, and can be used continuously for more than 80-90 minutes. This drone signal jammer also features an ultra-thick heatsink and unique cooling structure design to ensure its stability.
|
Model number |
TX-T10 |
|
Size |
735*235* 102 mm |
|
Weight |
6.15 kg |
|
Effective range |
2000-2500 meters, depends on actual conditions |
|
Frequency
|
410-485 MHz (433 MHz) 10 W |
|
840-920 MHz (900 MHz) 10 W |
|
|
1100-1280 MHz (1.2 GHz) 10 W |
|
|
1300-1390 MHz (1.4 GHz) 10 W |
|
|
1560-1620 MHz (1.5 GHz) 30 W |
|
|
2400-2500 MHz (2.4 GHz) 50 W |
|
|
5150-5350 MHz (5.2 GHz) 30 W |
|
|
5725-5850 MHz (5.8 GHz) 50 W |
|
|
Total 200 W |
|
|
Internal antenna gain |
433 MHz/5dBi |
|
2400 MHz/14dBi |
|
|
2400 MHz/14dBi |
|
|
GPSL1-L5 (1.2 Г/11dBi, 11.5 Г/12dBi) |
|
|
5800 MHz /16dBi |
|
|
5200 MHz/16dBi |
|
|
900 MHz. /9dBi |
|
|
Output power |
Total 230 W |
|
Battery life |
40-50 minutes |
|
Operating temperature |
from -40 ° C to + 65 ° C |
|
Power supply |
24V 10A inside lithium-ion battery |
|
(can be designed to connect an external battery) |
|
|
Relative humidity |
35 ~ 85% |
