Thanks to the output power of 50 W, it effectively enhances the signals in a wide frequency range. This makes it an excellent choice for scenarios requiring a stable signal reinforcement, for example, for testing communication equipment, where it can strengthen test signals to ensure accurate results, or for industrial control systems. A broadband power amplifier of 300–2000 MHz, 50 W, a signal source without a signal, is usually used in the field of communication, radars and FPV vehicles of drones.
|
No. |
Element |
Data |
Unit |
|
1 |
Frequency |
300-2000 |
MGC |
|
2 |
Test voltage |
28-32 |
В |
|
3 |
Current |
8.5 |
А |
|
4 |
Exit |
50 |
Tue |
|
5 |
Reinforcement factor |
47 |
dB |
|
6 |
Exit stability |
1 |
dB |
|
7 |
Entrance stability |
0-10 |
dB |
|
8 |
Connector |
F/female |
|
|
9 |
Output connector (KSVN) |
≤1.30 (without power and check VNA) |
|
|
10 |
Food wire |
Red+black+inclusion |
|
|
11 |
Control inclusion |
High |
|
|
12 |

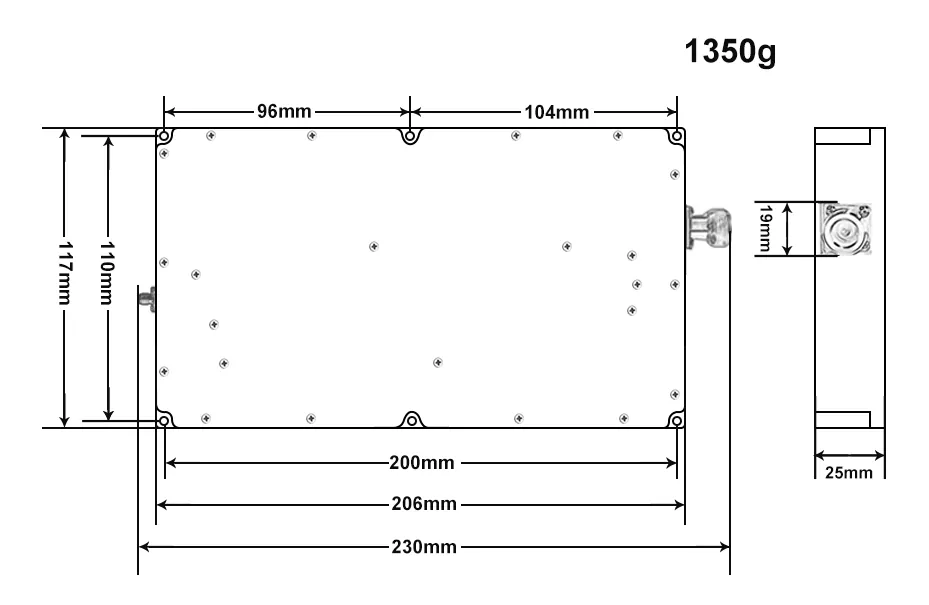

The size of the case |
206*117*25 |
mm |
|
13 |
Installation hole |
200*117 |
mm |
|
14 |
Weight |
1350 |
г |
|
15 |
Operating temperature |
-40~+65 |
℃ |
|
16 |
Corps material |
Aluminum |
|
|
17 |
The need for vibration |
Load on the wagon ok |
|
