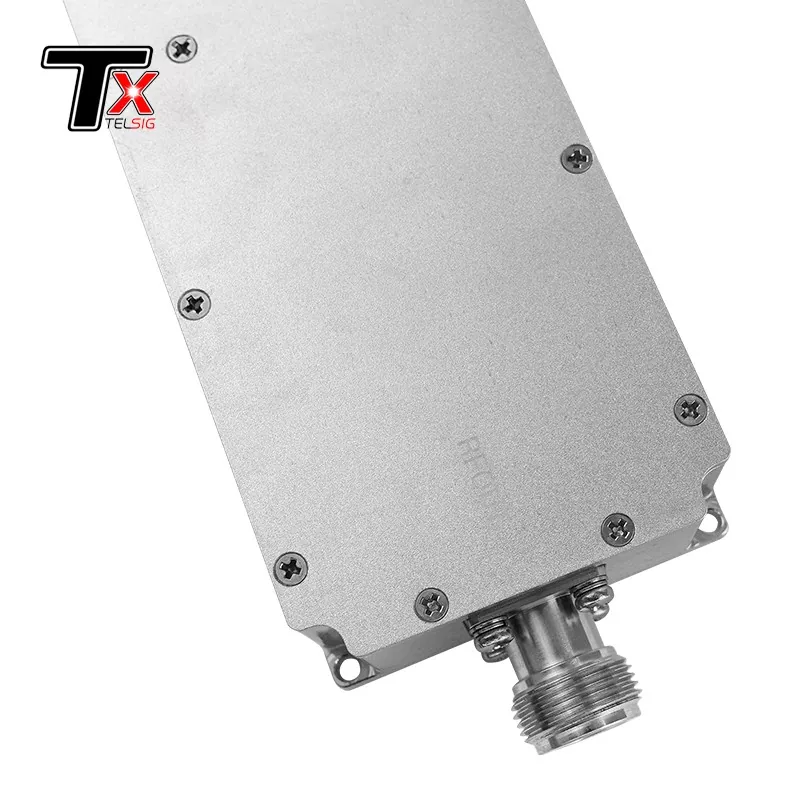

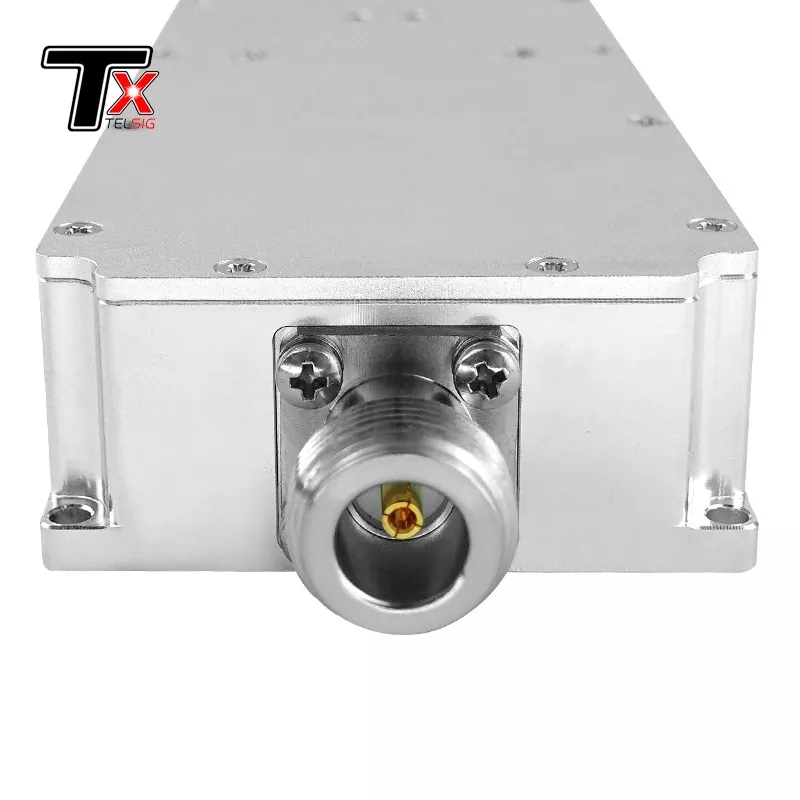

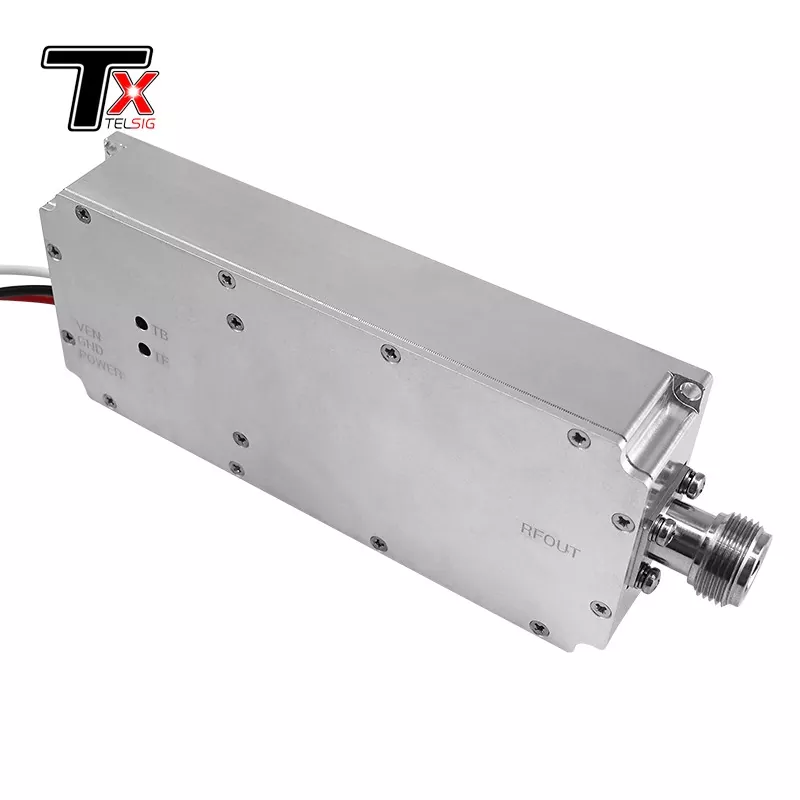

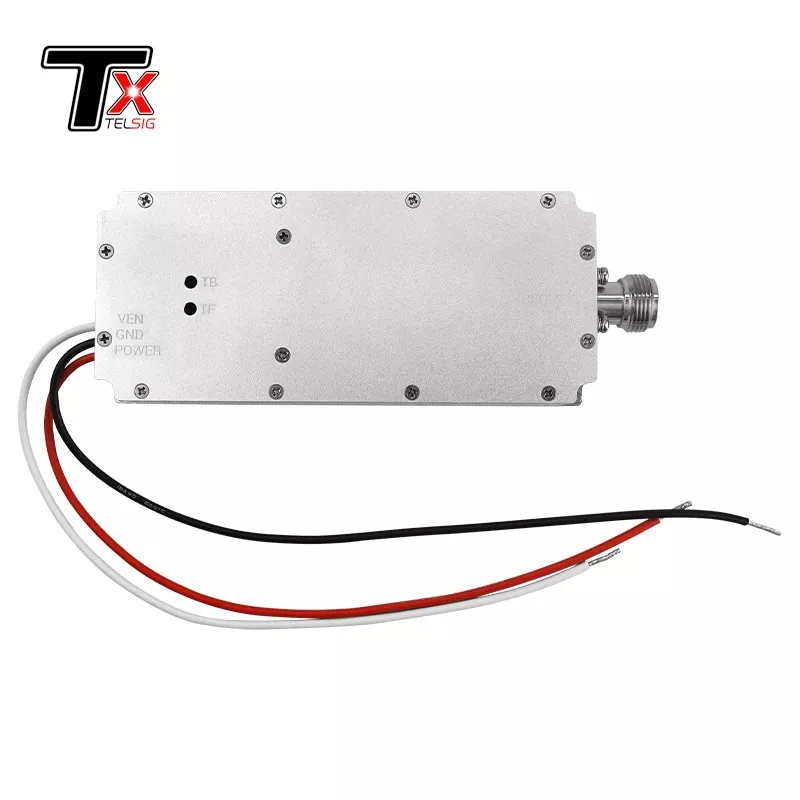

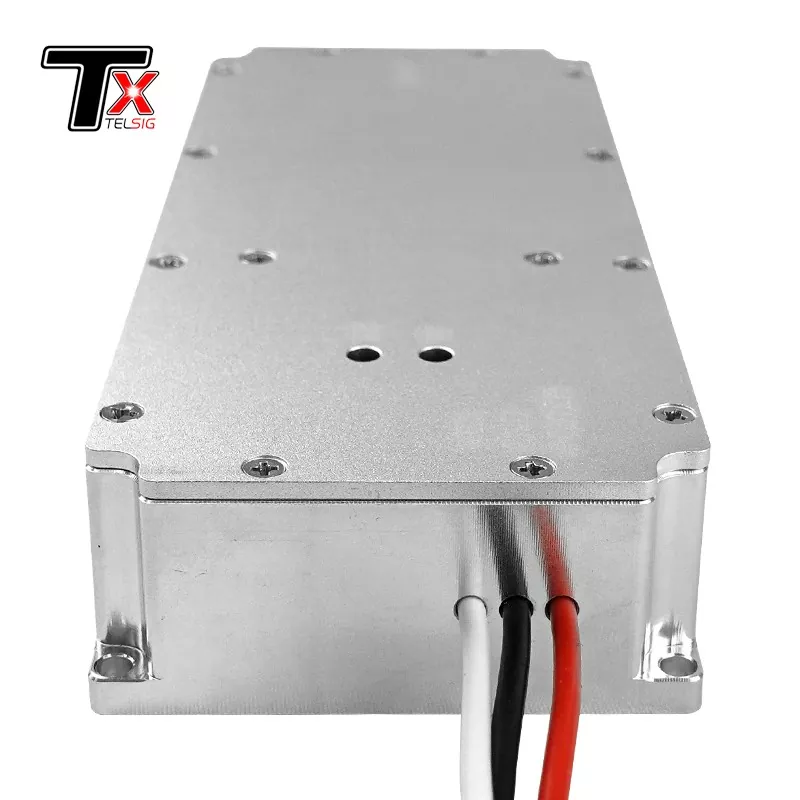

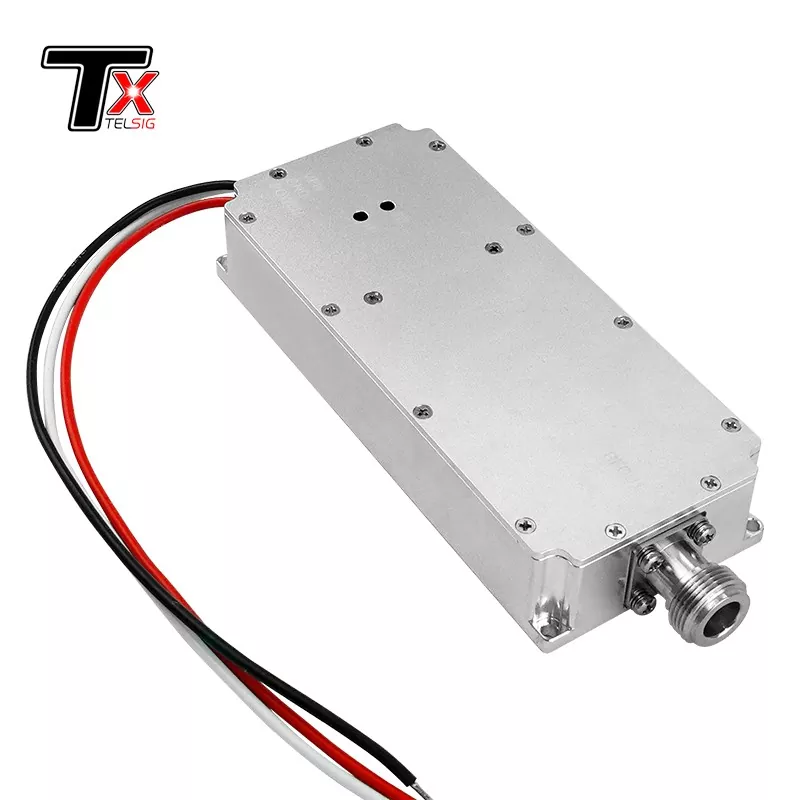

This expanded module of driving drones with a capacity of 90 watts with circular protection that gives it a wonderful ability to effectively disrupt the operation of communication systems and navigation of drones at a great distance. As a result of the drone, within its effective coverage area, will be made out of control or forced to make an immediate landing. The Anti-UAV 90W High-Power Module with a circular protection structure is equipped with a distinctive ring protective structure. This structure performs a double function. It provides reliable physical protection of the module, allowing it to withstand external clashes, blows and corrosion effects of harsh conditions.
|
No. |
Element |
Data |
Unit |
|
1 |
Frequency |
Individual |
MGC |
|
2 |
Test voltage |
28 |
В |
|
3 |
Current |
3.7 |
А |
|
4 |
Exit |
90 |
Tue |
|
5 |
Gain |
49 |
dB |
|
6 |
Exit stability |
1 |
dB |
|
7 |
The connector |
N/ female |
|
|
8 |
Office of the CSV connector |
≤1.30 (no power and dough VNA) |
|
|
9 |
Food wire |
Red+black+inclusion wire |
|
|
10 |
Enable management |
High |
|
|
11 |

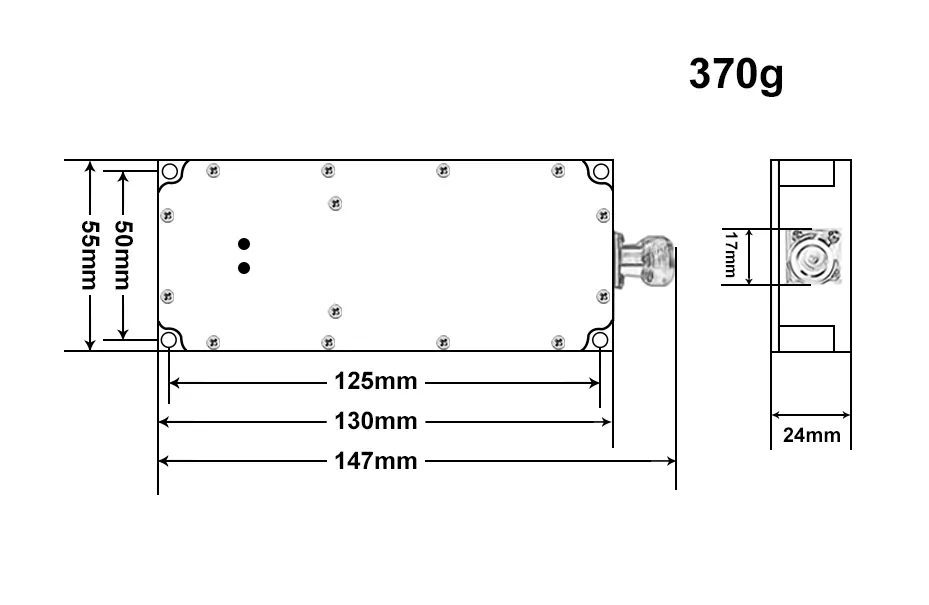

The size of the outer shell |
130*55*24 |
mm |
|
12 |
Installation hole |
125*50 |
mm |
|
13 |
Weight |
370 |
г |
|
14 |
Operating temperature |
-40~+65 |
℃ |
|
15 |
The material of the outer shell |
Aluminum |
|
|
16 |
The need for vibration |
Load on the car OK |
|
