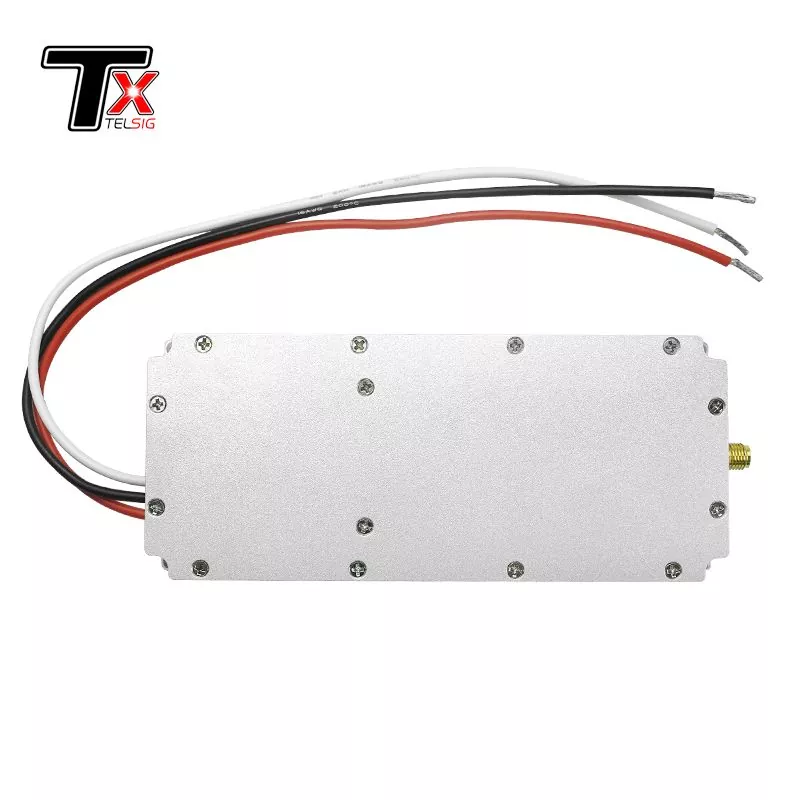

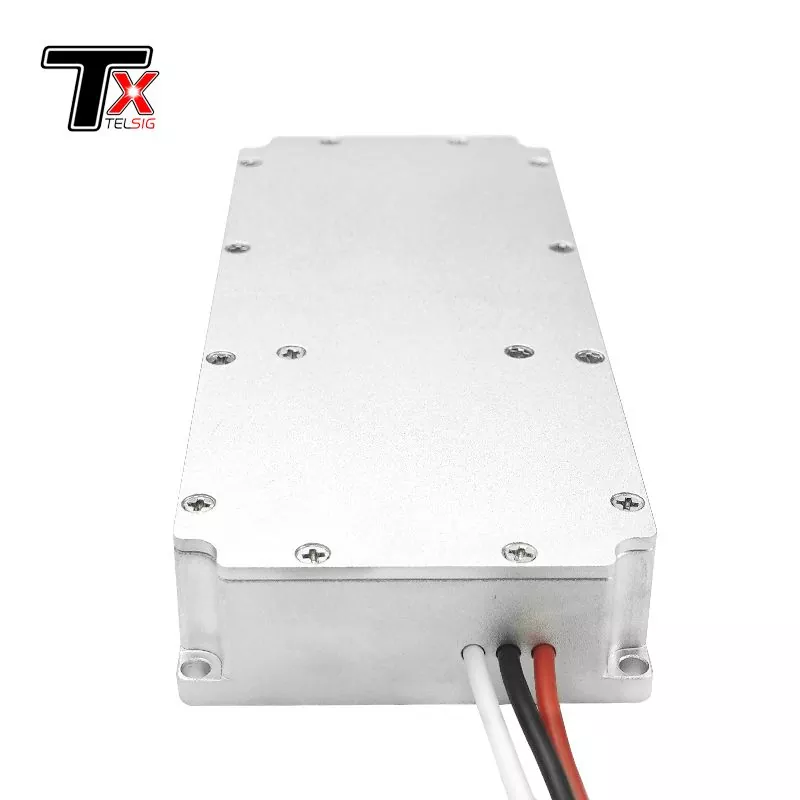

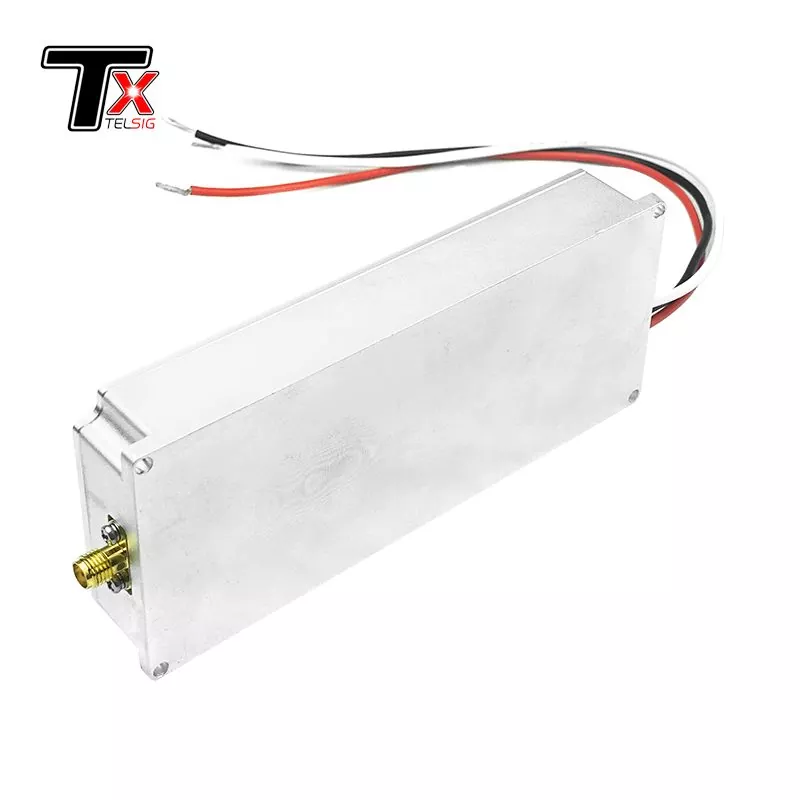

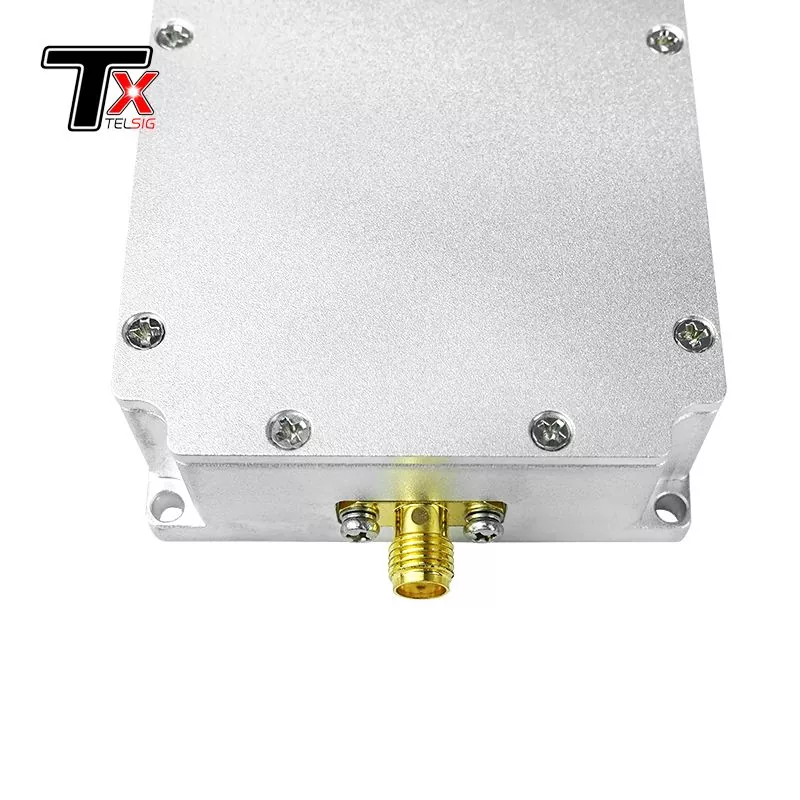

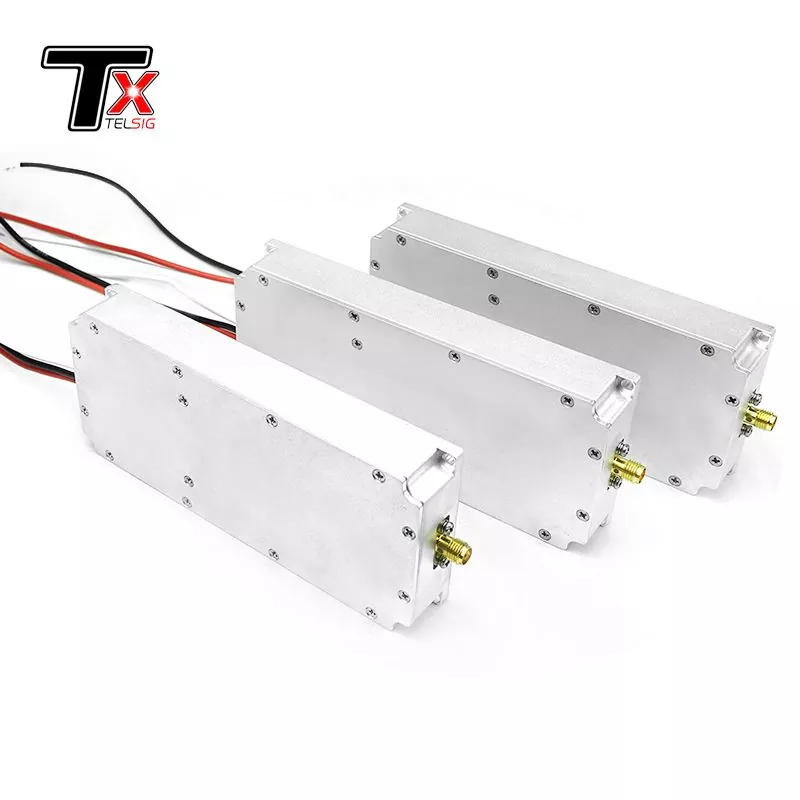

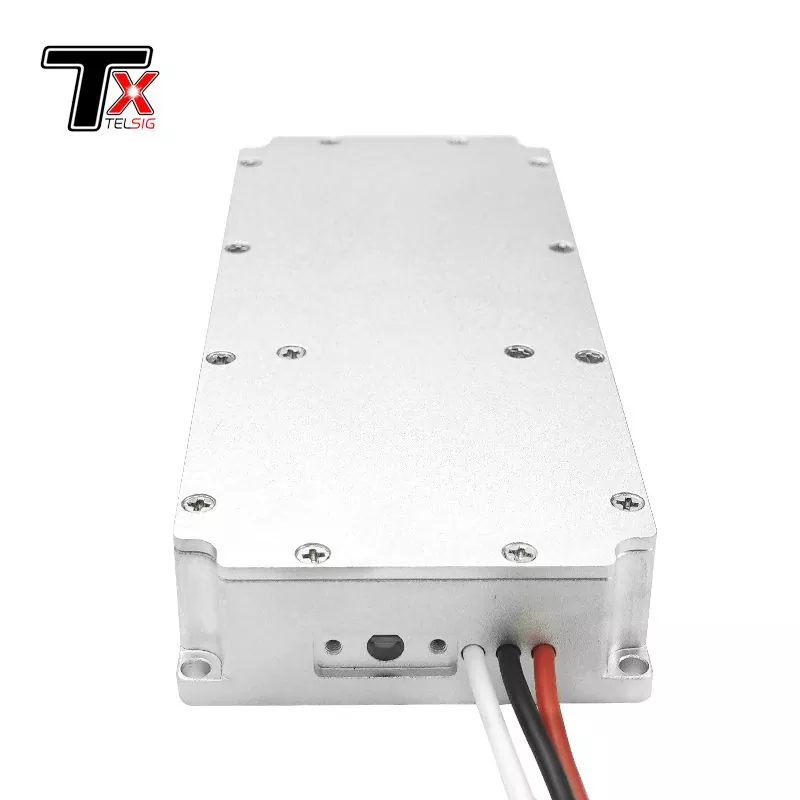

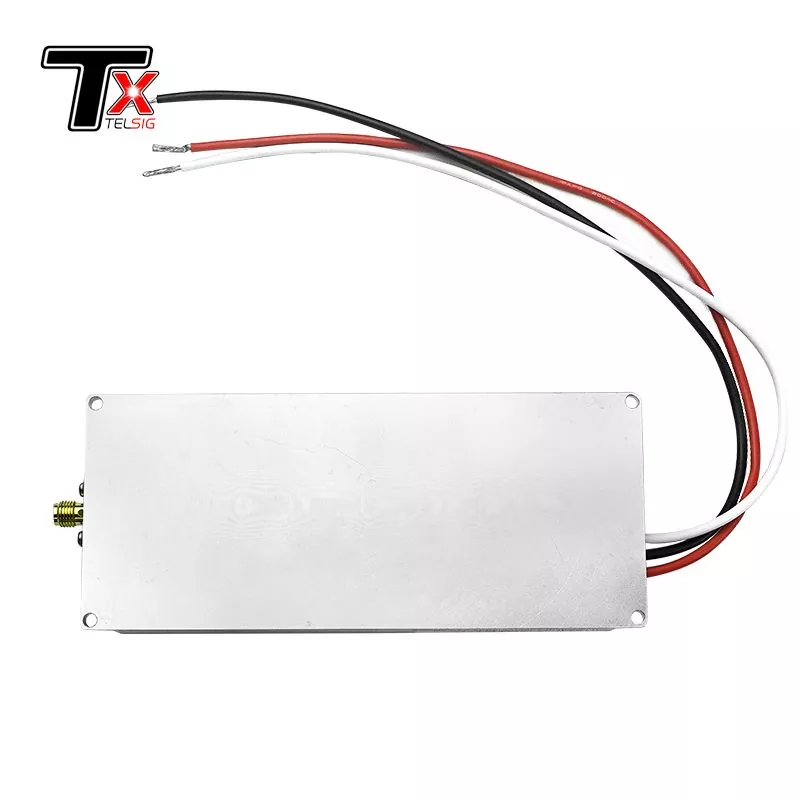

GaN Module With All-round Protection

This is an all-round protection GaN module designed and manufactured by Texin. The GaN material has a positive effect on increasing the noise immunity of the module and can also protect the module from damage. This GaN module has a longer lifespan and lower power consumption.

Send Inquiry

Product Description

GaN module with all-round protection introduced

This all-round protection GaN module can be used in anti-drone system to jam unmanned aerial vehicles and ensure air safety. This module not only uses high-quality GaN material, but also adds ring protection to better protect the module and reduce damage.

Specification GaN module with all-round protection

2.4 GHz 50 watt RF power amplifier specification
No.	Element	data	block	Notes
1	frequency	2400-2485/customized	MHz
2	Operating temperature from	-20~+70	℃
3	Maximum output power	50	Ж
4	operating voltages	DC2 v8	в
5	maximum gain	47	dB
6	unevenness	±1	dB
7	maximum current	4	а
8	output VSWR	≤1.5
9	output connector	SMA/F 50Ω		Customized
10	Power amplifier efficiency	45		when maximum power
11	Switch control	high low current level	в	0 to off /0.6 to
12	standing wave protection	OK
13	temperature protection	75°	℃
14	size	1305520	mm
15	weight	0.246	kg
