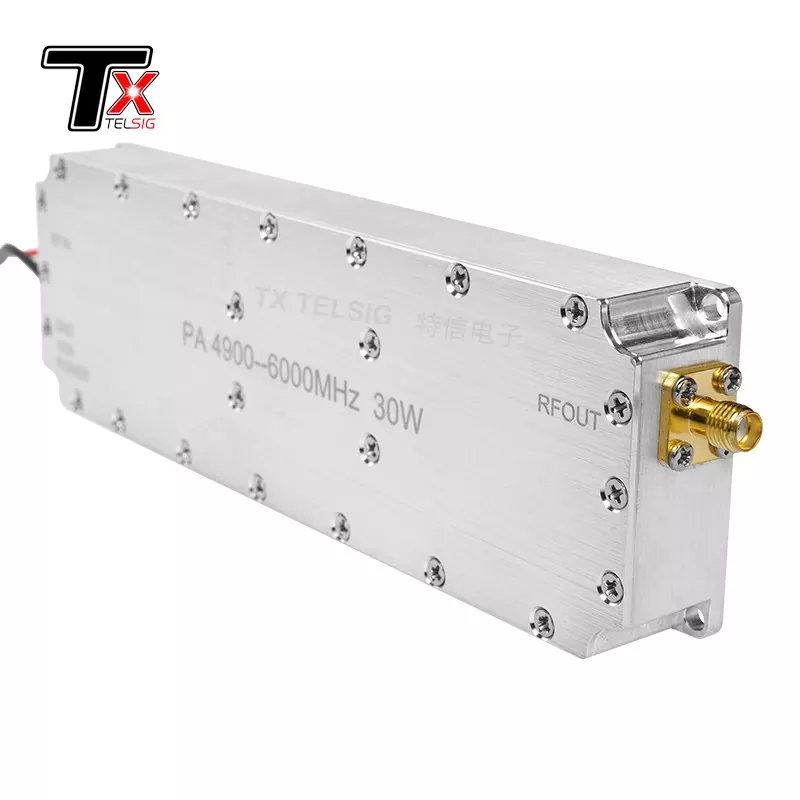

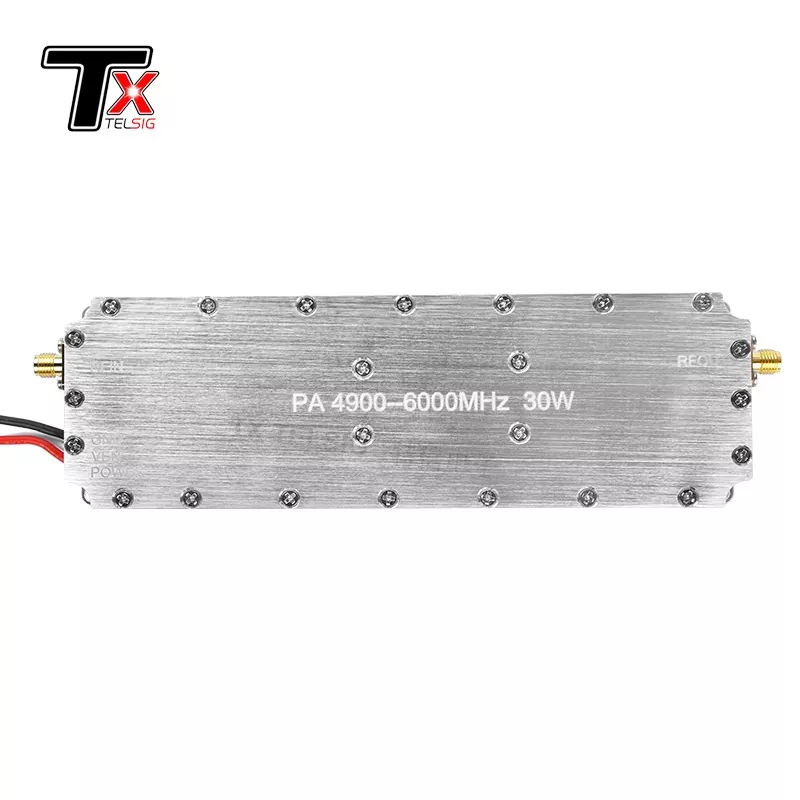

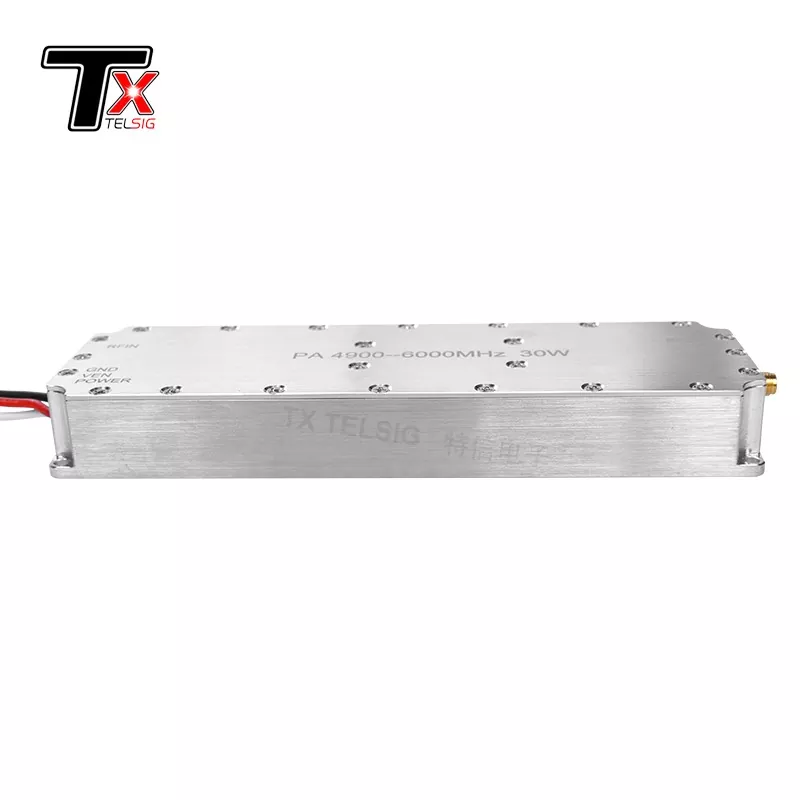

The power amplifier module is 4900-6000 MHz without a digital power source with a capacity of 30 W: the compact design allows you to easily integrate it into existing systems and provides stable operation for a long time without a noticeable decrease in performance. It is usually used in the field of communication, radar and FPV protection of drones. The frequency range is not fixed, tuning is possible.
|
No. |
Element |
Data |
Unit |
|
1 |
Frequency |
4900-6000 |
MGC |
|
2 |
Test voltage |
28-32 |
В |
|
3 |
Current |
3.5 |
А |
|
4 |
Exit |
30 |
Tue |
|
5 |
Reinforcement factor |
43 |
dB |
|
6 |
Exit stability |
1 |
dB |
|
7 |
Entrance stability |
0-10 |
dB |
|
8 |

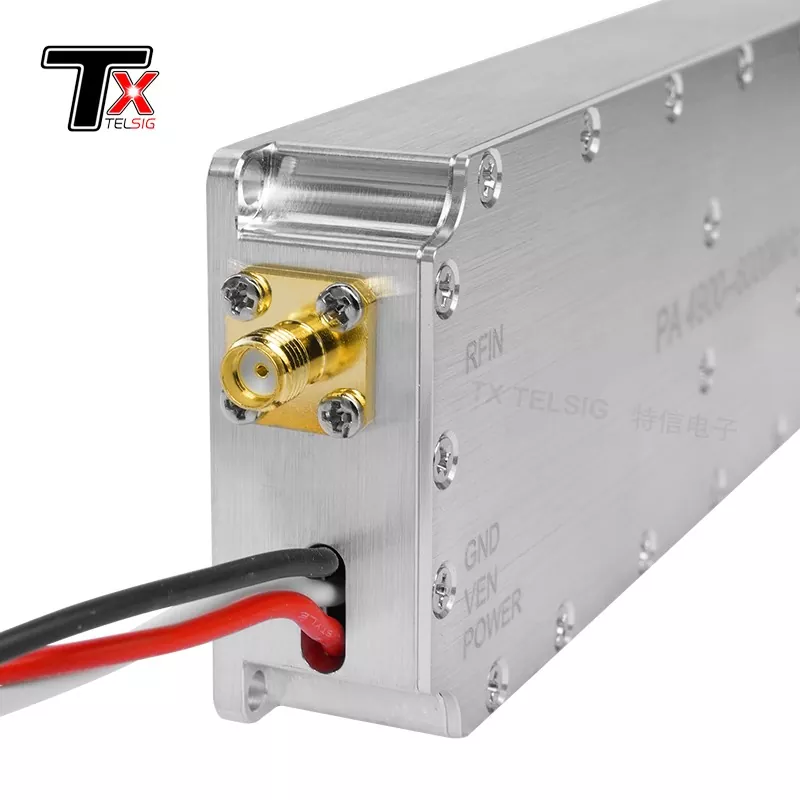

Connector |
SMA/Nest |
|
|
9 |
Output connector (KSVN) |
≤1.30 (without power and testing VNA) |
|
|
10 |

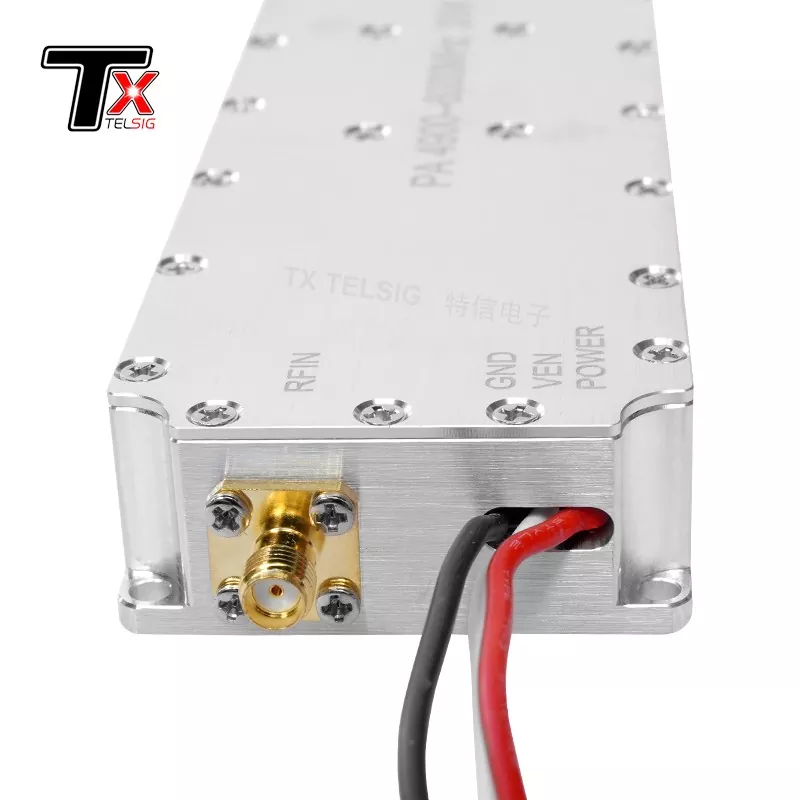

Food wire |
Red+black+inclusion wire |
|
|
11 |
Control inclusion |
High level of ON LEAR |
|
|
12 |

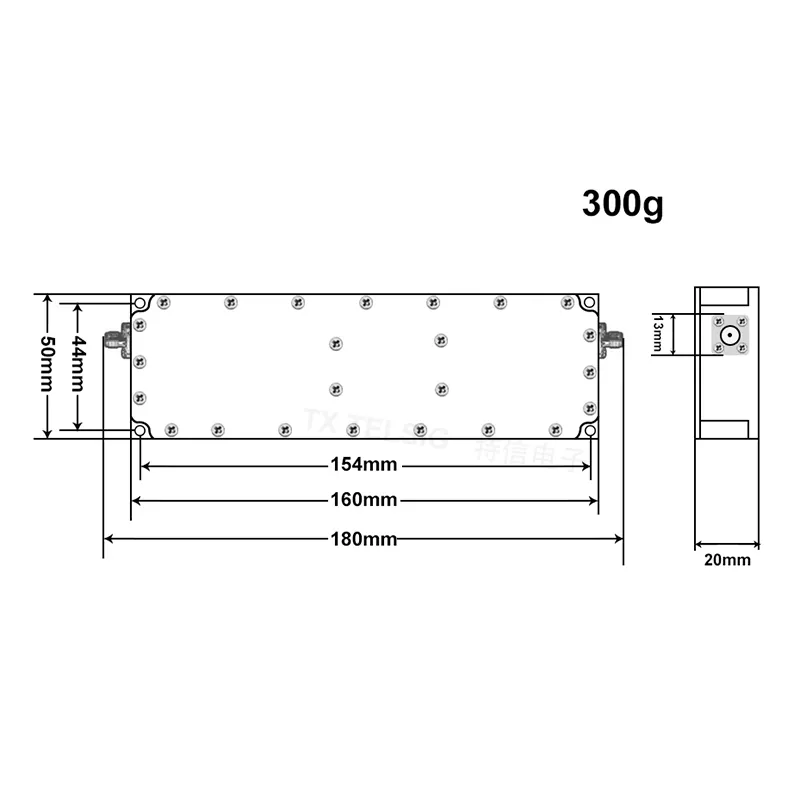

The size of the case |
160*50*20 |
mm |
|
13 |
Installation hole |
154*44 |
mm |
|
14 |
Weight |
300 |
г |
|
15 |
Operating temperature |
-40~+65 |
℃ |
|
16 |
Corps material |
Aluminum |
|
|
17 |
The need for vibration |
Load on the wagon ok |
|
